ผ่านระบบการจัดการคุณภาพ IS09001: 2000 และการรับรองระบบการจัดการคุณภาพ ISO/TSl6949: 2002
| ขนาดแผนภูมิ หน่วย: มม | มวล | ขนาดขอบเขต(มิลลิเมตร) | นางฟ้า | ขนาดประกอบ (มม.) | ||||||||
| แบริ่งหมายเลข | เมตร กก | ง | ง | ข | ร | ร 1 | ก | ง ก | ง ก | ร ก | ร ก1 | อี ทีเค |
| H7201-C-T-P-4 | 0.04 | 12 | 32 | 10 | 0.6 | 0.6 | 15 | 16.5 | 27.5 | 0.6 | 0.6 | 21.1 |
| H7201-AC-T-P4 | 0.04 | 12 | 32 | 10 | 0.6 | 0.6 | 25 | 16.5 | 27.5 | 0.6 | 0.6 | 21.1 |
| H7201-C-T-HQ1-P4 | 0.03 | 12 | 32 | 10 | 0.6 | 0.6 | 15 | 16.5 | 27.5 | 0.6 | 0.6 | 21.1 |
| H7201-AC-T-HQ1-P4 | 0.03 | 12 | 32 | 10 | 0.6 | 0.6 | 25 | 16.5 | 27.5 | 0.6 | 0.6 | 21.1 |
| H71902-C-T-P4 | 0.02 | 15 | 28 | 7 | 0.3 | 0.3 | 15 | 18 | 25.5 | 0.3 | 0.3 | 20.9 |
| H71902-AC-T-P4 | 0.02 | 15 | 28 | 7 | 0.3 | 0.3 | 25 | 18 | 25.5 | 0.3 | 0.3 | 20.9 |
| H71902-C-T-HQ1-P4 | 0.01 | 15 | 28 | 7 | 0.3 | 0.3 | 1ส | 18 | 25.5 | 0.3 | 0.3 | 20.9 |
| H71902-AC-T-HQ1-P4 | 0.01 | 15 | 28 | 7 | 0.3 | 0.3 | 25 | 18 | 25.5 | 0.3 | 0.3 | 20.9 |
| H71902-C-T-X-P4 | 0.02 | 15 | 28 | 7 | 0.3 | - | 1ส | 18 | 25.5 | 0.3 | 0.3 | 20.3 |
| H71902-AC-T-X-P4 | 0.02 | 15 | 28 | 7 | 0.3 | - | 25 | 18 | 25.5 | 0.3 | 0.3 | 20.3 |
| H71902-C-2RZ-T-HQ1-P4 | 0.02 | 15 | 28 | 7 | 0.3 | - | 25 | 18 | 25.5 | 0.3 | 0.3 | 20.3 |
| H7002-C-T-P-4 | 0.03 | 15 | 32 | 9 | 0.3 | 0.3 | 15 | 19 | 29 | 0.3 | 0.1 | 22.3 |
| H7002-AC-T-P4 | 0.03 | 15 | 32 | 9 | 0.3 | 0.3 | 25 | 19 | 29 | 0.3 | 0.1 | 22.3 |
| H7002-C-T-HQ1-P4 | 0.03 | 15 | 32 | 9 | 0.3 | 0.3 | 15 | 19 | 29 | 0.3 | 0.1 | 22.3 |
| H7002-AC-T-HQ1-P4 | 0.03 | 15 | 32 | 9 | 0.3 | 0.3 | 25 | 19 | 29 | 0.3 | 0.1 | 22.3 |
| H7002-C-T-X-P4 | 0.03 | 15 | 32 | 9 | 0.3 | - | 15 | 19 | 29 | 0.3 | 0.1 | 22.2 |
| H7002-AC-T-X-P4 | 0.03 | 15 | 32 | 9 | 0.3 | - | 25 | 19 | 29 | 0.3 | 0.1 | 22.2 |
| H7002-C-2RZ-T-HQ1-P4 | 0.03 | 15 | 32 | 9 | 0.3 | - | 25 | 19 | 29 | 0.3 | 0.1 | 22.2 |
| H7202-C-T-P-4 | 0.04 | 15 | 35 | 11 | 0.6 | 0.6 | 15 | 19.5 | 30.5 | 0.6 | 0.6 | 23.3 |
| H7202-AC-T-P4 | 0.04 | 15 | 35 | 11 | 0.6 | 0.6 | 25 | 19.5 | 30.5 | 0.6 | 0.6 | 23.3 |
| H7202-C-T-HQ1-P4 | 0.04 | 15 | 35 | 11 | 0.6 | 0.6 | 15 | 19.5 | 30.5 | 0.6 | 0.6 | 23.3 |
| H7202-AC-T-HQ1-P4 | 0.04 | 15 | 35 | 11 | 0.6 | 0.6 | 25 | 19.5 | 30.5 | 0.6 | 0.6 | 23 3 |
| H71903-C-T-P4 | 0.02 | 17 | 30 | 7 | 0.3 | 0.3 | 15 | 20 | 30.5 | 0.3 | 0.3 | 22.2 |
| H71903-AC-T-P4 | 0.02 | 17 | 30 | 7 | 0.3 | 0.3 | 25 | 20 | 27.5 | 0.3 | 0.3 | 22.2 |
| H71903-C-T-HQ1-P4 | 0.01 | 17 | 30 | 7 | 0.3 | 0.3 | 15 | 20 | 27.5 | 0.3 | 0.3 | 22.2 |
| H71903-AC-T-HQ1-P4 | 0.01 | 17 | 30 | 7 | 0.3 | 0.3 | 25 | 20 | 27.5 | 0.3 | 0.3 | 22.2 |
| H71903-C-T-X-P4 | 0.02 | 17 | 30 | 7 | 0.3 | - | 15 | 20 | 27.5 | 0.3 | 0.3 | 22.3 |
| H71903-AC-T-X-P4 | 0.02 | 17 | 30 | 7 | 0.3 | - | 25 | 20 | 27.5 | 0.3 | 0.3 | 22.3 |
| H71903-AC-T-X-P4 | 0.02 | 17 | 30 | 7 | 0.3 | - | 25 | 20 | 27.5 | 0.3 | 0.3 | 22.3 |
| H7003-C-T-P4 | 0.04 | 17 | 35 | 10 | 0.3 | 0.3 | 15 | 21 | 32 | 0.3 | 0.1 | 24.1 |
| H7003-C-T-HQ1-P4 | 0.03 | 17 | 35 | 10 | 0.3 | 0.3 | 15 | 21 | 32 | 0.3 | 0.1 | 24.1 |
| H7003-AC-T-HQ1-P4 | 0.03 | 17 | 35 | 10 | 0.3 | 0.3 | 25 | 21 | 32 | 0.3 | 0.1 | 24.1 |
| H7003-C-T-X-P4 | 0.04 | 17 | 35 | 10 | 0.3 | - | 15 | 21 | 32 | 0.3 | 0.1 | 24.7 |
| H7003-AC-T-X-P4 | 0.04 | 17 | 35 | 10 | 0.3 | - | 25 | 21 | 32 | 0.3 | 0.1 | 24.7 |
| H7003-C-2RZ-T-HQ1-P4 | 0.04 | 17 | 35 | 10 | 0.3 | - | 25 | 21 | 32 | 0.3 | 0.1 | 24.7 |
| H7203-C-T-P4 | 0.06 | 17 | 40 | 12 | 0.6 | 0.6 | 15 | 22.5 | 34.5 | 0.6 | 0.6 | 26.7 |
| H7203-AC-T-P4 | 0.06 | 17 | 40 | 12 | 0.6 | 0.6 | 25 | 22.5 | 34.5 | 0.6 | 0.6 | 26.7 |
| H7203-C-T-HQ1-P4 | 0.06 | 17 | 40 | 12 | 0.6 | 0.6 | 15 | 22.5 | 34.5 | 0.6 | 0.6 | 26.7 |
| H7203-AC-T-HQ1-P4 | 0.06 | 17 | 40 | 12 | 0.6 | 0.6 | 25 | 22.5 | 34.5 | 0.6 | 0.6 | 26.7 |
| H71904-C-T-P4 | 0.03 | 20 | 37 | 9 | 0.3 | 0.3 | 15 | 24 | 33.5 | 0.3 | 0.3 | 26.8 |
| H71904-AC-T-P4 | 0.03 | 20 | 37 | 9 | 0.3 | 0.3 | 25 | 24 | 33.5 | 0.3 | 0.3 | 26.8 |
| H71904-C-T-HQ1-P4 | 0.03 | 20 | 37 | 9 | 0.3 | 0.3 | 15 | 24 | 33.5 | 0.3 | 0.3 | 26.8 |
| H71904-AC-T-HQ1-P4 | 0.03 | 20 | 37 | 9 | 0.3 | 0.3 | 25 | 24 | 33.5 | 0.3 | 0.3 | 26.8 |
| H71904-C-T-X-P4 | 0.04 | 20 | 37 | 9 | 0.3 | - | 15 | 24 | 33.5 | 0.3 | 03 | 27.2 |
| H71904-AC-T-X-P4 | 0.04 | 20 | 37 | 9 | 0.3 | - | 25 | 24 | 33.5 | 0.3 | 0.3 | 27.2 |
| H71904-C-2RZ-T-HQ1-P4 | 0.04 | 20 | 37 | 9 | 0.3 | - | 25 | 24 | 33.5 | 0.3 | 0.3 | 27.2 |
| H7004-C-T-P4 | 0.07 | 20 | 42 | 12 | 0.6 | 0.6 | 15 | 25 | 37 | 0.6 | 0.3 | 28.8 |
| H7004 AC-T-P4 | 0.07 | 20 | 42 | 12 | 0.6 | 0.6 | 25 | 25 | 37 | 0.6 | 0.3 | 28.8 |
| H7004-C-T-HQ1P4 | 0.07 | 20 | 42 | 12 | 0.6 | 0.6 | 15 | 25 | 37 | 0.6 | 0.3 | 28.8 |
| H7004-AC-T-HQ1-P4 | 0.07 | 20 | 42 | 12 | 0.6 | 0.6 | 25 | 25 | 37 | 0.6 | 0.3 | 28.8 |
| H7004-C-T-X-P4 | 0.08 | 20 | 42 | 12 | 0.6 | 1 | 15 | 25 | 37 | 0.6 | 0.3 | 29.3 |
| H7004-AC-T-X-P4 | 0.08 | 20 | 42 | 12 | 0.6 | 1 | 25 | 25 | 37 | 0.6 | 0.3 | 29.3 |
| H7004-C-2RZ-T-HQ1-P4 | 0.08 | 20 | 42 | 12 | 0.6 | 1 | 25 | 25 | 37 | 0.6 | 0.3 | 29.3 |
| H7204-C-T-P4 | 0.1 | 20 | 47 | 14 | 1 | 1 | 15 | 26.5 | 40.5 | 1 | 1 | 31.7 |
| H7204-AC-T-P4 | 0.1 | 20 | 47 | 14 | 1 | 1 | 25 | 26.5 | 40.5 | 1 | 1 | 31.7 |
| H7204-C-T-HQ1-P4 | 0.09 | 20 | 47 | 14 | 1 | 1 | 15 | 26.5 | 40.5 | 1 | 1 | 31.7 |
| H7204-AC-T-HQ1-P4 | 0.09 | 20 | 47 | 14 | 1 | 1 | 25 | 26.5 | 40.5 | 1 | 1 | 31.7 |
| H71905-C-T-P4 | 0.04 | 25 | 42 | 9 | 0.3 | 0.3 | 15 | 29 | 38.5 | 0.3 | 0.3 | 31.8 |
| H71905-AC-T-P4 | 0.04 | 25 | 42 | 9 | 0.3 | 0.3 | 25 | 29 | 38.5 | 0.3 | 0.3 | 31.8 |
| H71905-C-T-HQ1-P4 | 0.04 | 25 | 42 | 9 | 0.3 | 0.3 | 15 | 29 | 38.5 | 0.3 | 0.3 | 31.8 |
| H71905-AC-T-HQ1-P4 | 0.04 | 25 | 42 | 9 | 0.3 | 0.3 | 25 | 29 | 38.5 | 0.3 | 0.3 | 31.8 |
| H71905-C-T-X-P4 | 0.05 | 25 | 42 | 9 | 0.3 | - | 15 | 29 | 38.5 | 0.3 | 0.3 | 32.2 |
| H7190S-AC-T-X-P4 | 0.05 | 25 | 42 | 9 | 0.3 | - | 25 | 29 | 38.5 | 0.3 | 0.3 | 32.2 |
| H71905-C-2RZ-T-HQ1-P4 | 0.05 | 25 | 42 | 9 | 0.3 | - | 25 | 29 | 38.5 | 0.3 | 03 | 32.2 |
| H7005-C-T-P4 | 0.08 | 25 | 47 | 12 | 0.6 | 0.6 | 15 | 30 | 42 | 0.6 | 0.3 | 33.5 |
| H7005-AC-T-P4 | 0.08 | 25 | 47 | 12 | 0.6 | 0.6 | 25 | 30 | 42 | 0.6 | 0.3 | 33.5 |
| H7005-C-T-HQ1-P4 | 0.08 | 25 | 47 | 12 | 0.6 | 0.6 | 15 | 30 | 42 | 0.6 | 0.3 | 33.5 |
| H7005-AC-T-HQ1-P4 | 0.08 | 25 | 47 | 12 | 0.6 | 0.6 | 25 | 30 | 42 | 0.6 | 0.3 | 33.5 |
| H7005-C-T-X-P4 | 0.09 | 25 | 47 | 12 | 0.6 | - | 15 | 30 | 42 | 0.6 | 0.3 | 34.3 |
| H7005-AC-T-X-P4 | 0.09 | 25 | 47 | 12 | 0.6 | - | 25 | 30 | 42 | 0.6 | 0.3 | 34.3 |
| H7005-C-2RZ-T-HQ1-P4 | 0.09 | 25 | 47 | 12 | 0.6 | - | 25 | 30 | 42 | 0.6 | 0.3 | 34.3 |
| H7205-C-T-P4 | 0.12 | 25 | 52 | 15 | 1 | 1 | 15 | 31.5 | 45.5 | 1 | 1 | 36.5 |
| H7205-AC-T-P4 | 0.12 | 25 | 52 | 15 | 1 | 1 | 25 | 31.5 | 45.5 | 1 | 1 | 36.5 |
| H7205-C-T-HQ1-P4 | 0.12 | 25 | 52 | 15 | 1 | 1 | 15 | 31.5 | 45.5 | 1 | 1 | 36.5 |
| H7205-AC-T-HQ1-P4 | 0.12 | 25 | 52 | 15 | 1 | 1 | 25 | 31.5 | 45.5 | 1 | 1 | 36.5 |
| H71906-C-T-P4 | 0.05 | 30 | 47 | 9 | 0.3 | 0.3 | 15 | 34 | 43.5 | 0.3 | 0.3 | 36.8 |
| H71906-AC-TP4 | 0.05 | 30 | 47 | 9 | 0.3 | 0.3 | 25 | 34 | 43.5 | 0.3 | 0.3 | 36.8 |
| H71906-C-T-HQ1-P4 | 0.04 | 30 | 47 | 9 | 0.3 | 0.3 | 15 | 34 | 43.5 | 0.3 | 0.3 | 36.8 |
| H71906-AC-T-HQ1-P4 | 0.04 | 30 | 47 | 9 | 0.3 | 0.3 | 25 | 34 | 43.5 | 0.3 | 0.3 | 36.8 |
| H71906-C-T-X-P4 | 0.05 | 30 | 47 | 9 | 0.3 | - | 15 | 34 | 43.5 | 0.3 | 0.3 | 36.8 |
| H71906-AC-T-X-P4 | 0.05 | 30 | 47 | 9 | 0.3 | - | 25 | 34 | 43.5 | 0.3 | 0.3 | 36.8 |
| H71906-C-2RZ-T-HQ1-P4 | 0.05 | 30 | 47 | 9 | 0.3 | - | 25 | 34 | 43.5 | 0.3 | 0.3 | 36.8 |
| H7006-C-T-P4 | 0.11 | 30 | 55 | 13 | 1 | 1 | 15 | 36 | 49 | 1 | 0.3 | 40.4 |
| H7006-AC-T-P4 | 0.11 | 30 | 55 | 13 | 1 | 1 | 2ส | 36 | 49 | 1 | 03 | 40.4 |
| H7006-C-T-HQ1-P4 | 0.1 | 30 | 55 | 13 | 1 | 1 | 15 | 36 | 49 | 1 | 0.3 | 40.4 |
| H7006-AC-T-HQ1-P4 | 0.1 | 30 | 55 | 13 | 1 | 1 | 25 | 36 | 49 | 1 | 0.3 | 40.4 |
| H7006-C-T-X-P4 | 0.13 | 30 | 55 | 13 | 1 | - | 15 | 36 | 49 | 1 | 0.3 | 40.5 |
| H7006-AC-T-X-P4 | 0.13 | 30 | 55 | 13 | 1 | - | 25 | 36 | 49 | 1 | 0.3 | 40.5 |
| H7006-C-2RZ-T-HQ1-P4 | 0.12 | 30 | 55 | 13 | 1 | - | 25 | 36 | 49 | 1 | 0.3 | 40.5 |
| H7206-C-T-P4 | 0.19 | 30 | 62 | 16 | 1 | 1 | 15 | 37.5 | 54.5 | 1 | 1 | 43.7 |
| H7206-AC-T-P4 | 0.19 | 30 | 62 | 16 | 1 | 1 | 25 | 37.5 | 54.5 | 1 | 1 | 43.7 |
| H7206-C-T-HQ1-P4 | 0.17 | 30 | 62 | 16 | 1 | 1 | 15 | 37.5 | 54.5 | 1 | 1 | 43.7 |
| H7206-AC-T-HQ1-P4 | 0.17 | 30 | 62 | 16 | 1 | 1 | 25 | 37.5 | 54.5 | 1 | 1 | 43.7 |
| H71907-C-T-P4 | 0.07 | 35 | 55 | 10 | 0.6 | 0.6 | 15 | 40 | 51.5 | 0.6 | 0.6 | 44 |
| H71907-AC-T-P4 | 0.07 | 35 | 55 | 10 | 0.6 | 0.6 | 25 | 40 | 51.5 | 0.6 | 0.6 | 44 |
| H71907-C-T-HQ1-P4 | 0.06 | 35 | 55 | 10 | 0.6 | 0.6 | 15 | 40 | 51.5 | 0.6 | 0.6 | 44 |
| H71907-AC-T-HQ1-P4 | 0.06 | 35 | 55 | 10 | 0.6 | 0.6 | 25 | 40 | 51.5 | 0.6 | 0.6 | 44 |
| H71907-C-T-X-P4 | 0.08 | 35 | 55 | 10 | 0.6 | - | 15 | 40 | 51.5 | 0.6 | 0.6 | 43.3 |
| H71907-AC-T-X-P4 | 0.08 | 35 | 55 | 10 | 0.6 | - | 25 | 40 | 51.5 | 0.6 | 0.6 | 43.3 |
| H71907 C-2RZ-T-HQ1-P4 | 0.08 | 35 | 55 | 10 | 0.6 | - | 25 | 40 | 51.5 | 0.6 | 0.6 | 43.3 |
| H7007-C-T-P4 | 0.15 | 35 | 62 | 14 | 1 | 1 | 15 | 41 | 56 | 1 | 0.3 | 45.6 |
| H7007-AC-T-P4 | 0.15 | 35 | 62 | 14 | 1 | 1 | 25 | 41 | S6 | 1 | 0.3 | 45.6 |
| H7007-C-T-HQ1-P4 | 0.13 | 35 | 62 | 14 | 1 | 1 | 15 | 41 | 56 | 1 | 0.3 | 45.6 |
| H7007-AC-T-HQ1-P4 | 0.13 | 35 | 62 | 14 | 1 | 1 | 25 | 41 | 56 | 1 | 03 | 45.6 |
| H7007-C-T-X-P4 | 0.17 | 35 | 62 | 14 | 1 | - | 15 | 41 | 56 | 1 | 0.3 | 46.5 |
| H7007-AC-T-X-P4 | 0.17 | 35 | 62 | 14 | 1 | - | 25 | 41 | 56 | 1 | 0.3 | 46.5 |
| H7007-C-2RZ-T-HQ1-P4 | 0.17 | 35 | 62 | 14 | 1 | - | 25 | 41 | 56 | 1 | 0.3 | 46.5 |
| H7207-C-T-P4 | 0.28 | 35 | 72 | 17 | 1.1 | 1.1 | 15 | 44 | 63 | 1 | 1 | 50.7 |
| H7207-AC-T-P4 | 0.28 | 35 | 72 | 17 | 1.1 | 1.1 | 25 | 44 | 63 | 1 | 1 | 50.7 |
| H7207-C-T-HQ1-P4 | 0.24 | 35 | 72 | 17 | 1.1 | 1.1 | 15 | 44 | 63 | 1 | 1 | 50.7 |
| H7207-AC-T-HQ1-P4 | 0.24 | 35 | 72 | 17 | 1.1 | 1.1 | 25 | 44 | 63 | 1 | 1 | 50.7 |
| H71908-C-T-P4 | 0.11 | 40 | 62 | 12 | 0.6 | 0.6 | 15 | 45 | 58.5 | 0.6 | 0.6 | 49.1 |
| H71908-AC-T-P4 | 0.11 | 40 | 62 | 12 | 0.6 | 0.6 | 25 | 45 | 58.5 | 0.6 | 0.6 | 49.1 |
| H71908-C-T-HQ1-P4 | 0.09 | 40 | 62 | 12 | 0.6 | 0.6 | 15 | 45 | 58.ส | 0.6 | 0.6 | 49.1 |
| H71908-AC-T-HQ1-P4 | 0.09 | 40 | 62 | 12 | 0.6 | 0.6 | 25 | 45 | 58.5 | 0.6 | 0.6 | 49.1 |
| H71908-C-T-X-P4 | 0.13 | 40 | 62 | 12 | 0.6 | - | 15 | 45 | 58.5 | 0.6 | 0.6 | 49.3 |
| H71908-AC-T-XP4 | 0.13 | 40 | 62 | 12 | 0.6 | - | 25 | 45 | 58.5 | 0.6 | 0.6 | 49.3 |
| H71908-C-2RZ-T-HQ1P4 | 0.12 | 40 | 62 | 12 | 0.6 | - | 25 | 45 | 58.5 | 0.6 | 0.6 | 49.3 |
| H7008-C-T-P4 | 0.19 | 40 | 68 | 15 | 1 | 1 | 15 | 46 | 62 | 1 | 0.3 | 50.8 |
| H7008-AC-T-P4 | 0.19 | 40 | 68 | 15 | 1 | 1 | 25 | 46 | 62 | 1 | 0.3 | 50.8 |
| H7008-C-T-HQ1-P4 | 0.17 | 40 | 68 | 15 | 1 | 1 | 15 | 46 | 62 | 1 | 0.3 | 50.8 |
| H7008-AC-T-HQ1-P4 | 0.17 | 40 | 68 | 15 | 1 | 1 | 25 | 46 | 62 | 1 | 0.3 | 50.8 |
| H7008-C-T-X-P4 | 0.22 | 40 | 68 | เป็น | 1 | - | 15 | 46 | 62 | 1 | 0.3 | 52 |
| H7008-AC-T-X-P4 | 0.22 | 40 | 68 | 15 | 1 | - | 25 | 46 | 62 | 1 | 03 | 52 |
| H7008-C-2RZ-T-HQ1-P4 | 0.2 | 40 | 68 | 15 | 1 | - | 25 | 46 | 62 | 1 | 0.3 | 52 |
| H7208-C-T-P4 | 0.37 | 40 | 80 | 18 | 1.1 | 1.1 | 15 | 48 | 72 | 1 | 1 | 56.7 |
| H7208-AC-T-P4 | 0.37 | 40 | 80 | 18 | 1.1 | 1.1 | 25 | 48 | 72 | 1 | 1 | 56.7 |
| H7208-C-T-HQ1-P4 | 0.33 | 40 | 80 | 18 | 1.1 | 1.1 | 15 | 48 | 72 | 1 | 1 | 56.7 |
| H7208-AC-T-HQ1-P4 | 0.33 | 40 | 80 | 18 | 1.1 | 1.1 | 25 | 48 | 72 | 1 | 1 | 56.7 |
| H71909-C-T-P4 | 0.13 | 45 | 68 | 12 | 0.6 | 0.6 | 15 | 50 | 63.5 | 0.6 | 0.6 | 54.4 |
| H71909-AC-T-P4 | 0.13 | 45 | 68 | 12 | 0.6 | 0.6 | 25 | 50 | 63.5 | 0.6 | 0.6 | 54.4 |
| H71909-C-T-HQ1-P4 | 0.11 | 45 | 68 | 12 | 0.6 | 0.6 | 15 | 50 | 63.5 | 0.6 | 0.6 | 54.4 |
| H71909-AC-T-HQ1-P4 | 0.11 | 45 | 68 | 12 | 0.6 | 0.6 | 25 | 50 | 63.5 | 0.6 | 0.6 | 54.4 |
| H71909-C-T-X-P4 | 0.14 | 45 | 68 | 12 | 0.6 | - | 15 | 50 | 63.5 | 0.6 | 0.6 | 54.5 |
| H71909-AC-T-X-P4 | 0.14 | 45 | 68 | 12 | 0.6 | - | 25 | 50 | 63.5 | 0.6 | 0.6 | 54.5 |
| H71909-C-2RZ-T-HQ1-P4 | 0.13 | 45 | 68 | 12 | 0.6 | - | 25 | 50 | 63.5 | 0.6 | 0.6 | 54.5 |
| H7009-C-T-P4 | 0.23 | 45 | 75 | 16 | 1 | 1 | 15 | 51 | 69 | 1 | 0.3 | 56.2 |
| H7009-AC-T-P4 | 0.23 | 45 | 75 | 16 | 1 | 1 | 25 | 51 | 69 | 1 | 0.3 | 56.2 |
| H7009-C-T-HQ1P4 | 0.2 | 45 | 75 | 16 | 1 | 1 | 15 | 51 | 69 | 1 | 0.3 | 56.2 |
| H7009-AC-T-HQ1-P4 | 0.2 | 45 | 75 | 16 | 1 | 1 | 25 | 51 | 69 | 1 | 0.3 | 56.2 |
| H7009-C-T-X-P4 | 0.27 | 45 | 75 | 16 | 1 | - | 15 | 51 | 69 | 1 | 0.3 | 57.7 |
| H7009-AC-T-X-P4 | 0.27 | 45 | 75 | 16 | 1 | - | 25 | 51 | 69 | 1 | 0.3 | 57.7 |
| H7009-C-2RZ-T-HQ1-P4 | 0.26 | 45 | 75 | 16 | 1 | - | 25 | 51 | 69 | 1 | 0.3 | 57.7 |
| H7209-C-T-P4 | 0.41 | 45 | 85 | 19 | 1.1 | 1.1 | 15 | 52.5 | 78 | 1 | 1 | 61.8 |
| H7209-AC-T-P4 | 0.41 | 45 | 85 | 19 | 1.1 | 1.1 | 25 | 52.5 | 78 | 1 | 1 | 61.8 |
| H7209-C-T-HQ1-P4 | 0.34 | 45 | 85 | 19 | 1.1 | 1.1 | 15 | 52.5 | 78 | 1 | 1 | 61.8 |
| H7209-AC-T-HQ1-P4 | 0.34 | 45 | 85 | 19 | 1.1 | 1.1 | 25 | 52.5 | 78 | 1 | 1 | 61.8 |
| H71910-C-T-P4 | 0.13 | 50 | 72 | 12 | 0.6 | 0.6 | 15 | 55 | 67.5 | 0.6 | 0.6 | 58.9 |
| H71910-AC-T-P4 | 0.13 | 50 | 72 | 12 | 0.6 | 0.6 | 25 | 55 | 67.5 | 0.6 | 0.6 | 58.9 |
| H71910-C-T-HQ1-P4 | 0.11 | 50 | 72 | 12 | 0.6 | 0.6 | 15 | 55 | 67.5 | 0.6 | 0.6 | 58.9 |
| HT1910-AC-T-P4 | 0.11 | 50 | 72 | 12 | 0.6 | 0.6 | 25 | 55 | 67.5 | 0.6 | 0.6 | 58.9 |
| HJ1910-C-T-X-P4 | 0.15 | 50 | 72 | 12 | 0.6 | 0.6 | 15 | 55 | 67.5 | 0.6 | 0.6 | 59 |
| H71910-AC-T-X-P4 | 0.15 | 50 | 72 | 12 | 0.6 | 0.6 | 25 | 55 | 67.5 | 0.6 | 0.6 | 59 |
| H71910-C-2RZ-T-HQl-P4 | 0.14 | 50 | 72 | 12 | 0.6 | 0.6 | 25 | 55 | 67.5 | 0.6 | 0.6 | 59 |
| H7010-C-T-P4 | 0.25 | 50 | 80 | 16 | 1 | 1 | 15 | 56 | 74 | 1 | 0.3 | 61.2 |
| H7010-AC-T-P4 | 0.25 | 50 | 80 | 16 | 1 | 1 | 25 | 56 | 74 | 1 | 0.3 | 61.2 |
| H7010-C-T-HQ1-P4 | 0.21 | 50 | 80 | 16 | 1 | 1 | 15 | 56 | 74 | 1 | 0.3 | 61.2 |
| H7010-AC-T-HQ1-P4 | 0.21 | 50 | 80 | 16 | 1 | 1 | 25 | 56 | 74 | 1 | 0.3 | 61.2 |
| H7010-C-T-X-P4 | 0.29 | 50 | 80 | 16 | 1 | - | 15 | 56 | 74 | 1 | 0.3 | 62.7 |
| H7010-AC-T-X-P4 | 0.29 | 50 | 80 | 16 | 1 | - | 25 | 56 | 74 | 1 | 0.3 | 62.7 |
| H7010-C-2RZ-T-HQ1-P4 | 0.27 | 50 | 80 | 16 | 1 | - | 25 | 56 | 74 | 1 | 0.3 | 62.7 |
| H3210-C-T-P4 | 0.46 | 50 | 90 | 20 | 1.1 | 1.1 | 15 | 57 | 83 | 1 | 1 | 66.2 |
| H7210-AC-T-P4 | 0.46 | 50 | 90 | 20 | 1.1 | 1.1 | 25 | 57 | 83 | 1 | 1 | 66.2 |
| HT210-C-T-HQ1-P4 | 0.39 | 50 | 90 | 20 | 1.1 | 1.1 | 1ส | 57 | 83 | 1 | 1 | 66.2 |
| H7210AC-T-HQ1-P4 | 0.39 | 50 | 90 | 20 | 1.1 | 1.1 | 25 | 57 | 83 | 1 | 1 | 66.2 |
| H71911-C-T-P4 | 0.18 | 55 | 80 | 13 | 1 | 1 | 15 | 60 | 75.5 | 0.6 | 0.6 | 65.1 |
| H71911-AC-T-P4 | 0.18 | 55 | 80 | 13 | 1 | 1 | 25 | 60 | 75.5 | 0.6 | 0.6 | 65.1 |
| H71911-C-T.HQ1-P4 | 0.15 | 55 | 80 | 13 | 1 | 1 | 15 | 60 | 75.5 | 0.6 | 0.6 | 65.1 |
| H71911-AC-THQ1-P4 | 0.15 | 55 | 80 | 13 | 1 | 1 | 25 | 60 | 75.5 | 0.6 | 0.6 | 65.1 |
| HT1911-C-T-X-P4 | 0.2 | 55 | 80 | 13 | 1 | - | 15 | 60 | 75.5 | 0.6 | 0.6 | 65.2 |
| HT1911-AC-T-X-P4 | 0.2 | 55 | 80 | 13 | 1 | - | 25 | 60 | 75.5 | 0.6 | 0.6 | 65.2 |
| HT1911-C-2RZ-T-HQ1-P4 | 0.19 | 55 | 80 | 13 | 1 | - | 25 | 60 | 75.5 | 0.6 | 0.6 | 65.2 |
| H7011-C-T-P4 | 0.37 | 55 | 90 | 18 | 1.1 | 1.1 | 15 | 62 | 83 | 1 | 0.6 | 68.1 |
| H7011-AC-T-P4 | 0.37 | 55 | 90 | 18 | 1.1 | 1.1 | 25 | 62 | 83 | 1 | 0.6 | 68.1 |
| H7011-C-T-HQ1-P4 | 0.32 | 55 | 90 | 18 | 1.1 | 1.1 | 15 | 62 | 83 | 1 | 0.6 | 68.1 |
| H7011-AC-T-HQ1-P4 | 0.32 | 55 | 90 | 18 | 1.1 | 1.1 | 25 | 62 | 83 | 1 | 0.6 | 68.1 |
| H7011-C-T-X-P4 | 0.43 | 55 | 90 | 18 | 1.1 | - | 15 | 62 | 83 | 1 | 0.6 | 69.7 |
| H7012-C-T.HQ1-P4 | 0.34 | 60 | 95 | 18 | 1.1 | 1.1 | 15 | 67 | 88 | 1 | 0.6 | 73.1 |
| H7012-AC-THQ1-P4 | 0.34 | 60 | 95 | 18 | 1.1 | 1.1 | 25 | 67 | 88 | 1 | 0.6 | 73.1 |
| 70、719、72 ชุด |
|
|
|
|
|
|
| hl2 | H12 | สูงสุด |
| ค่าที่กำหนด |
| H7012-C-T-X-P4 | 0.46 | 60 | 95 | 18 | 1.1 | - | 15 | 67 | 88 | 1 | 0.6 | 74.7 |
| H7012-AC-T-X-P4 | 0.46 | 60 | 95 | 18 | 1.1 | - | 25 | 67 | 88 | 1 | 0.6 | 74.7 |
| H7012-C-2RZ-T-HQ1-P4 | 0.43 | 60 | 95 | 18 | 1.1 | - | 25 | 67 | 88 | 1 | 0.6 | 74.7 |
| H7212-C-T-P4 | 0.8 | 60 | 110 | 22 | 1.5 | 1.5 | 15 | 69.5 | 101.5 | 1.5 | 1.5 | 81.2 |
| H7212-AC-T-P4 | 0.8 | 60 | 110 | 22 | 1.5 | 1.5 | 25 | 69.5 | 101.5 | 1.5 | 1.5 | 81.2 |
| H7212-C-T-HQ1-P4 | 0.7 | 60 | 110 | 22 | 1.5 | 1.5 | 15 | 69.5 | 101.5 | 1.5 | 1.5 | 81.2 |
| H7212-AC-T-P4 | 0.7 | 60 | 110 | 22 | 1.5 | 1.5 | 25 | 69.5 | 101.5 | 1.5 | 1.5 | 81.2 |
| H71913-C-T-P4 | 0.2 | 65 | 90 | 13 | 1 | 1 | 15 | 70 | 85.5 | 0.6 | 0.6 | 75.1 |
| H71913-AC-TP4 | 0.2 | 65 | 90 | 13 | 1 | 1 | 25 | 70 | 85.5 | 0.6 | 0.6 | 75.1 |
| H71913-C-T-HQ1-P4 | 0.17 | 65 | 90 | 13 | 1 | 1 | 15 | 70 | 85.5 | 0.6 | 0.6 | 75.1 |
| H71913-AC-T-HQ1-P4 | 0.17 | 65 | 90 | 13 | 1 | 1 | 25 | 70 | 85.5 | 0.6 | 0.6 | 75.1 |
| H7011-AC-T-X-P4 | 0.43 | 55 | 90 | 18 | 1.1 | - | 25 | 62 | 83 | 1 | 0.6 | 69.7 |
| H7011-C-2RZ-T-HQ1-P4 | 0.4 | สส | 90 | 18 | 1.1 | - | 25 | 62 | 83 | 1 | 0.6 | 69.7 |
| H7211-C-T-P4 | 0.61 | 55 | 100 | 21 | 1.5 | 1.5 | 15 | 63 | 92 | 1.5 | 1.5 | 73.7 |
| H7211-AC-T-P4 | 0.61 | 55 | 100 | 21 | 1.5 | 1.5 | 25 | 63 | 92 | 1.5 | 1.5 | 73.7 |
| H7211-C-T-HQ1-P4 | 0.51 | 55 | 100 | 21 | 1.5 | 1.5 | 15 | 63 | 92 | 1.5 | 1.5 | 73.7 |
| H7211-AC-T-HQ1-P4 | 0.51 | 55 | 100 | 21 | 1.5 | 1.5 | 25 | 63 | 92 | 1.5 | 1.5 | 73.7 |
| H71912-C-TP4 | 0.19 | 60 | 85 | 13 | 1 | 1 | 15 | 65 | 80.5 | 0.6 | 0.6 | 70.1 |
| H71912-AC-T-P4 | 0.19 | 60 | 85 | 13 | 1 | 1 | 25 | 65 | 80.5 | 0.6 | 0.6 | 70.1 |
| H71912-C-T-HQ1-P4 | 0.16 | 60 | 85 | 13 | 1 | 1 | 15 | 65 | 80.5 | 0.6 | 0.6 | 70.1 |
| H71912-AC-T-HQ1-P4 | 0.16 | 60 | 85 | 13 | 1 | 1 | 25 | 65 | 80.5 | 0.6 | 0.6 | 70.1 |
| H71912-C-T-X-P4 | 0.21 | 60 | 85 | 13 | 1 | - | 15 | 65 | 80.5 | 0.6 | 0.6 | 70.2 |
| H71912-AC-T-X-P4 | 0.21 | 60 | 85 | 13 | 1 | - | 25 | 65 | 80.ส | 0.6 | 0.6 | 70.2 |
| H71912-C-2RZ-T-HQ1-P4 | 0.19 | 60 | 85 | 13 | 1 | - | 25 | 65 | 80.5 | 0.6 | 0.6 | 70.2 |
| H7012-C-T-P4 | 0.4 | 60 | 95 | 18 | 1.1 | 1.1 | 15 | 67 | 88 | 1 | 0.6 | 73.1 |
| H7012-AC-T-P4 | 0.4 | 60 | 95 | 18 | 1.1 | 1.1 | 25 | 67 | 88 | 1 | 0.6 | 73.1 |
| H71913-C-T-X-P4 | 0.23 | 65 | 90 | 13 | 1 | 1 | 15 | 70 | 85.5 | 0.6 | 0.6 | 75.2 |
| H71913-AC-T-XP4 | 0.23 | 65 | 90 | 13 | 1 | 1 | 25 | 70 | 85.5 | 0.6 | 0.6 | 75.2 |
| H71913-AC-2RZ-T-HQ1-P4 | 0.21 | 65 | 90 | 13 | 1 | 1 | 25 | 70 | 85.5 | 0.6 | 0.6 | 75.2 |
| H7013-C-T-P4 | 0.42 | 65 | 100 | 18 | 1.1 | 1.1 | 15 | 72 | 93 | 1 | 0.6 | 78.1 |
| 70、719、72 ชุด |
|
|
|
|
|
|
| hl2 | H12 | สูงสุด |
| ค่าที่กำหนด |
| H7013-AC-T-P4 | 0.42 | 65 | 100 | 18 | 1.1 | 1.1 | 25 | 72 | 93 | 1 | 0.6 | 78.1 |
| H7013-C-T-HQ1-P4 | 0.36 | 65 | 100 | 18 | 1.1 | 1.1 | 15 | 72 | 93 | 1 | 0.6 | 78.1 |
| H7013-C-T-X-P4 | 0.36 | 65 | 100 | 18 | 1.1 | 1.1 | 25 | 72 | 93 | 1 | 0.6 | 78.1 |
| H7013-AC-T-HQ1-P4 | 0.48 | 65 | 100 | 18 | 1.1 | - | 15 | 72 | 93 | 1 | 0.6 | 79.7 |
| H7013-AC-T-X-P4 | 0.48 | 65 | 100 | 18 | 1.1 | - | 25 | 72 | 93 | 1 | 0.6 | 79.7 |
| H7013-C-2RZ-T-HQ1-P4 | 0.45 | 65 | 100 | 18 | 1.1 | - | 25 | 72 | 93 | 1 | 0.6 | 79.7 |
| H7213-C-T-P4 | 1.02 | 65 | 120 | 23 | 1.5 | 1.5 | 15 | 75.5 | 109.5 | 1.5 | 1.5 | 88.2 |
| H7213-AC-T-P4 | 1.02 | 65 | 120 | 23 | 1.5 | 1.5 | 25 | 75.5 | 109.5 | 1.5 | 1.5 | 88.2 |
| H7213-C-T-HQ1-P4 | 0.88 | 65 | 120 | 23 | 1.5 | 1.5 | 15 | 75.5 | 109.5 | 1.5 | 1.5 | 88.2 |
| H7213-AC-THQ1-P4 | 0.88 | 65 | 120 | 23 | 1.5 | 1.5 | 25 | 75.5 | 109.5 | 1.5 | 1.5 | 88.2 |
| H71914-C-T-P4 | 0.33 | 70 | 100 | 16 | 1 | 1 | 15 | 76 | 94.5 | 0.6 | 0.6 | 82.2 |
| H71914-AC-T-P4 | 0.33 | 70 | 100 | 16 | 1 | 1 | 25 | 76 | 94.5 | 0.6 | 0.6 | 82.2 |
| H71914-C-T-HQ1-P4 | 0.28 | 70 | 100 | 16 | 1 | 1 | 15 | 76 | 94.5 | 0.6 | 0.6 | 82.2 |
| H71914-AC-T-HQ1-P4 | 0.28 | 70 | 100 | 16 | 1 | 1 | 25 | 76 | 94.5 | 0.6 | 0.6 | 82.2 |
| H71914-C-T-X-P4 | 0.37 | 70 | 100 | 16 | 1 | - | 15 | 76 | 94.5 | 0.6 | 0.6 | 82.3 |
| H71914-AC-T-X-P4 | 0.37 | 70 | 100 | 16 | 1 | - | 25 | 76 | 94.5 | 0.6 | 0.6 | 82.3 |
| H71914-AC-2RZ-T-HQ1-P4 | 0.35 | 70 | 100 | 16 | 1 | - | 25 | 76 | 94.5 | 0.6 | 0.6 | 82.3 |
| H7014-C-T-P4 | 0.59 | 70 | 110 | 20 | 1.1 | 1.1 | 15 | 77 | 102 | 1 | 0.6 | 85 |
| H7014-AC-T-P4 | 0.59 | 70 | 110 | 20 | 1.1 | 1.1 | 25 | 77 | 102 | 1 | 0.6 | 85 |
| H7014-C-T-HQ1P4 | 0.5 | 70 | 110 | 20 | 1.1 | 1.1 | 15 | 77 | 102 | 1 | 0.6 | 85 |
| H7014-AC-T-HQ1-P4 | 0.5 | 70 | 110 | 20 | 1.1 | 1.1 | 25 | 77 | 102 | 1 | 0.6 | 85 |
| H7014-C-T-X-P4 | 0.67 | 70 | 110 | 20 | 1.1 | - | 15 | 77 | 102 | 1 | 0.6 | 86.7 |
| H7014-AC-T-X-P4 | 0.67 | 70 | 110 | 20 | 1.1 | - | 25 | 77 | 102 | 1 | 0.6 | 86.7 |
| H7014-C-2RZ-T-HQ1-P4 | 0.63 | 70 | 110 | 20 | 1.1 | - | 25 | 77 | 102 | 1 | 0.6 | 86.7 |
| H7214-C-T-P4 | 1.12 | 70 | 125 | 24 | 1.5 | 1.5 | 15 | 80 | 115 | 1.5 | 1.5 | 92.7 |
| H7214-AC-T-P4 | 1.12 | 70 | 125 | 24 | 1.5 | 1.5 | 25 | 80 | 115 | 1.5 | 1.5 | 92.7 |
| H7214-C-T-HQ1-P4 | 0.96 | 70 | 125 | 24 | 1.5 | 1.5 | 15 | 80 | 115 | 1.5 | 1.5 | 92.7 |
| H7214-AC-T-HQ1-P4 | 0.96 | 70 | 125 | 24 | 1.5 | 1.5 | 25 | 80 | 115 | 1.5 | 1.5 | 92.7 |
| H71915-C-T-P4 | 0.35 | 75 | 105 | 16 | 1 | 1 | 15 | 81 | 99.5 | 0.6 | 0.6 | 87.2 |
| H71915-AC-T-P4 | 0.35 | 75 | 105 | 16 | 1 | 1 | 25 | 81 | 99.5 | 0.6 | 0.6 | 87.2 |
| H71915-C-T-HQ1-P4 | 0.3 | 75 | 105 | 16 | 1 | 1 | 15 | 81 | 99.5 | 0.6 | 0.6 | 87.2 |
| H71915-AC-T-HQ1-P4 | 0.3 | 75 | 105 | 16 | 1 | 1 | 25 | 81 | 99.5 | 0.6 | 0.6 | 87.2 |
| H71915-C-T-X-P4 | 0.4 | 75 | 10ส | 16 | 1 | - | 15 | 81 | 99.5 | 0.6 | 0.6 | 87.3 |
| H71915-AC-T-X-P4 | 0.4 | 75 | 105 | 16 | 1 | - | 25 | 81 | 99.5 | 0.6 | 0.6 | 87.3 |
| H71915-AC-2RZ-T-HQ1-P4 | 0.37 | 75 | 105 | 16 | 1 | - | 25 | 81 | 99.5 | 0.6 | 0.6 | 87.3 |
| H7015-C-T-P4 | 0.62 | 75 | 115 | 20 | 1.1 | 1.1 | 15 | 82 | 107 | 1 | 0.6 | 90 |
| H7015-AC-T-P4 | 0.62 | 75 | 115 | 20 | 1.1 | 1.1 | 25 | 82 | 107 | 1 | 0.6 | 90 |
| H7015-C-T-HQ1-P4 | 0.53 | 75 | 115 | 20 | 1.1 | 1.1 | 15 | 82 | 107 | 1 | 0.6 | 90 |
| H7015-AC-T-HQ1-P4 | 0.53 | 75 | 115 | 20 | 1.1 | 1.1 | 25 | 82 | 107 | 1 | 0.6 | 90 |
| H7015-C-T-X-P4 | 0.71 | 75 | 115 | 20 | 1.1 | - | 15 | 82 | 107 | 1 | 0.6 | 91.7 |
| H7015-AC-T-X-P4 | 0.71 | 75 | 115 | 20 | 1.1 | - | 25 | 82 | 107 | 1 | 0.6 | 91.7 |
| H7015-C-2RZ-T-HQ1-P4 | 0.66 | 75 | 115 | 20 | 1.1 | - | 25 | 82 | 107 | 1 | 0.6 | 91.7 |
| H7215-C-T-P4 | 1.21 | 75 | 130 | 25 | 1.5 | 1.5 | 15 | 85 | 120 | 1.5 | 1.5 | 97.7 |
| H7215-AC-T-P4 | 1.21 | 75 | 130 | 25 | 1.5 | 1.5 | 25 | 85 | 120 | 1.5 | 1.5 | 97.7 |
| H7215-C-T-HQ1-P4 | 1.05 | 75 | 130 | 25 | 1.5 | 1.5 | 15 | 85 | 120 | 1.5 | 1.5 | 97.7 |
| H7215-AC-T-HQ1-P4 | 1.05 | 75 | 130 | 25 | 1.5 | 1.5 | 25 | 85 | 120 | 1.5 | 1.5 | 97.7 |
| H71916-C-TP4 | 0.37 | 80 | 110 | 16 | 1 | 1 | 15 | 86 | 104 | 0.6 | 0.6 | 92.2 |
| H71916-AC-TP4 | 0.37 | 80 | 110 | 16 | 1 | 1 | 25 | 86 | 104 | 0.6 | 0.6 | 92.2 |
| H71916-C-T-HQ1-P4 | 0.31 | 80 | 110 | 16 | 1 | 1 | 15 | 86 | 104 | 0.6 | 0.6 | 92.2 |
| H71916-AC-T-HQ1-P4 | 0.31 | 80 | 110 | 16 | 1 | 1 | 25 | 86 | 104 | 0.6 | 0.6 | 92.2 |
| H71916-C-T-X-P4 | 0.41 | 80 | 110 | 16 | 1 | - | 15 | 86 | 104 | 0.6 | 0.6 | 92.2 |
| H71916-AC-T-X-P4 | 0.41 | 80 | 110 | 16 | 1 | - | 25 | 86 | 104 | 0.6 | 0.6 | 92.2 |
| H71916-AC-2RZ-T-HQ1-P4 | 0.38 | 80 | 110 | 16 | 1 | - | 25 | 86 | 104 | 0.6 | 0.6 | 92.2 |
| H7016-C-T-P4 | 0.84 | 80 | 125 | 22 | 1.1 | 1.1 | 15 | 88 | 117 | 1 | 0.6 | 96.8 |
| H7016-AC-T-P4 | 0.84 | 80 | 125 | 22 | 1.1 | 1.1 | 25 | 88 | 117 | 1 | 0.6 | 96.8 |
| H7016-C-T-HQ1-P4 | 0.71 | 80 | 125 | 22 | 1.1 | 1.1 | 15 | 88 | 117 | 1 | 0.6 | 96.8 |
| H7016-AC-T-HQ1-P4 | 0.71 | 80 | 125 | 22 | 1.1 | 1.1 | 25 | 88 | 117 | 1 | 0.6 | 96.8 |
| H7016-C-T-X-P4 | 0.96 | 80 | 125 | 22 | 1.1 | - | 15 | 88 | 117 | 1 | 0.6 | 98.9 |
| ซีรีส์ 70、719、72 |
|
|
|
|
|
|
| hl2 | H12 | สูงสุด | รัล | ค่าที่กำหนด |
| H7216-C-T-P4 | 1.52 | 80 | 140 | 26 | 2 | 2 | 15 | 94 | 126 | 2 | 2 |
|
| H7216-AC-T-P4 | 1.52 | 80 | 140 | 26 | 2 | 2 | 25 | 94 | 126 | 2 | 2 | 105.2 |
| H7216-C-T-HQ1-P4 | 1.4 | 80 | 140 | 26 | 2 | 2 | 15 | 94 | 126 | 2 | 2 | 105.2 |
| H7216-AC-T-HQ1-P4 | 1.4 | 80 | 140 | 26 | 2 | 2 | 25 | 94 | 126 | 2 | 2 | 105.2 |
| H71917-C-T-P4 | 0.53 | 85 | 120 | 18 | 1.1 | 1.1 | 15 | 92 | 114 | 0.6 | 0.6 | 99.2 |
| H71917-AC-T-P4 | 0.53 | 85 | 120 | 18 | 1.1 | 1.1 | 25 | 92 | 114 | 0.6 | 0.6 | 99.2 |
| H71917-C-T-HQ1-P4 | 0.45 | 85 | 120 | 18 | 1.1 | 1.1 | 15 | 92 | 114 | 0.6 | 0.6 | 99.2 |
| H71917-AC-T-HQ1-P4 | 0.45 | 85 | 120 | 18 | 1.1 | 1.1 | 25 | 92 | 114 | 0.6 | 0.6 | 99.2 |
| H71917-C-T-X-P4 | 0.61 | 85 | 120 | 18 | 1.1 | - | 15 | 92 | 114 | 0.6 | 0.6 | 99.7 |
| H71917-AC-T-X-P4 | 0.61 | 85 | 120 | 18 | 1.1 | - | 25 | 92 | 114 | 0.6 | 0.6 | 99.7 |
| H71917-AC-2RZ-T-HQ1-P4 | 0.57 | 85 | 120 | 18 | 1.1 | - | 25 | 92 | 114 | 0.6 | 0.6 | 99.7 |
| H7017-C-T-P4 | 0.89 | 85 | 130 | 22 | 1.1 | 11 | 15 | 93 | 122 | 1 | 0.6 | 101.8 |
| H7017-AC-T-P4 | 0.89 | 85 | 130 | 22 | 1.1 | 1.1 | 25 | 93 | 122 | 1 | 0.6 | 101.8 |
| H7017-C-T-HQ1-P4 | 0.74 | 85 | 130 | 22 | 1.1 | 1.1 | 15 | 93 | 122 | 1 | 0.6 | 101.8 |
| H7017-AC-T-HQ1-P4 | 0.74 | 85 | 130 | 22 | 1.1 | 1.1 | 25 | 93 | 122 | 1 | 0.6 | 101.8 |
| H7017-C-T-X-P4 | 0.99 | 85 | 130 | 22 | 1.1 | - | 15 | 93 | 122 | 1 | 0.6 | 103.9 |
| H7017-AC-T-X-P4 | 0.99 | 85 | 130 | 22 | 1.1 | - | 25 | 93 | 122 | 1 | 0.6 | 103.9 |
| H7017-C-2RZ-T-HQ1-P4 | 0.93 | 85 | 130 | 22 | 1.1 | - | 25 | 93 | 122 | 1 | 0.6 | 103.9 |
| H7217-C-T-P4 | 1.85 | 85 | 150 | 23 | 2 | 2 | 15 | 98 | 138 | 2 | 2 | 112.3 |
| H7217-AC-T-P4 | 1.85 | 85 | 150 | 23 | 2 | 2 | 25 | 98 | 138 | 2 | 2 | 112.3 |
| H7217-C-T-HQ1-P4 | 1.58 | 85 | 150 | 28 | 2 | 2 | 15 | 98 | 138 | 2 | 2 | 112.3 |
| H7217-AC-T-HQ1-P4 | 1.58 | 85 | 150 | 28 | 2 | 2 | 25 | 98 | 138 | 2 | 2 | 112.3 |
| H71918-C-T-P4 | 0.55 | 90 | 125 | 18 | 1.1 | 1.1 | 15 | 97 | 119 | 0.6 | 0.6 | 104.2 |
| H71918-AC-T-P4 | 0.55 | 90 | 125 | 18 | 1.1 | 1.1 | 25 | 97 | 119 | 0.6 | 0.6 | 104.2 |
| H71918-C-T-HQ1-P4 | 0.47 | 90 | 125 | 18 | 1.1 | 1.1 | 15 | 97 | 119 | 0.6 | 0.6 | 104.2 |
| H71918-AC-T-HQ1-P4 | 0.47 | 90 | 125 | 18 | 1.1 | 1.1 | 25 | 97 | 119 | 0.6 | 0.6 | 104.2 |
| H71918-C-T-X-P4 | 0.63 | 90 | 125 | 18 | 1.1 | - | 15 | 97 | 119 | 0.6 | 0.6 | 104.5 |
| H71918-AC-T-X-P4 | 0.63 | 90 | 125 | 18 | 1.1 | - | 25 | 97 | 119 | 0.6 | 0.6 | 104.5 |
| H71918-AC-2RZ-T-HQ1-P4 | 0.58 | 90 | 125 | 18 | 1.1 | - | 25 | 97 | 119 | 0.6 | 0.6 | 104.5 |
| H7018-C-T-P4 | 1.15 | 90 | 140 | 24 | 1.5 | 1.5 | 15 | 100 | 131 | 1.5 | 0.6 | 108.6 |
Hangzhou Huaxing Kechuang Holding Group Co., Ltd ก่อตั้งขึ้นในเดือนมีนาคม พ.ศ. 2538 ปัจจุบันมี Hangzhou Huaxing Bearing Co., Ltd., Hangzhou Yijia Precision Bearing Co., Ltd., Zhejiang Aiken Machinery Co., Ltd., Zhejiang Aijing Machinery Technology Co., Ltd. และ Hangzhou Aibesi Bearing Co., Ltd., Huaxing Bearing Technology (Changxing) Co., Ltd. 6 บริษัท และสวนอุตสาหกรรม 2 แห่ง เราเป็นมืออาชีพและบริษัท กลุ่มนี้ครอบคลุมพื้นที่ทั้งหมด 66,800 ตารางเมตร โดยมีพื้นที่ก่อสร้างรวมตามแผน 130,000 ตารางเมตร และพื้นที่ก่อสร้าง 70,000 ตารางเมตร บริษัทสามในหกแห่งได้ผ่านการระบุองค์กรเทคโนโลยีสูงในพื้นที่สำคัญที่รัฐสนับสนุน และมีศูนย์ R&D ไฮเทคระดับจังหวัดสองแห่ง ศูนย์ R&D ของกลุ่มมีบุคลากรด้านการวิจัยทางวิทยาศาสตร์มากกว่า 80 คน รวมถึงแพทย์ ผู้เชี่ยวชาญ และวิศวกรอาวุโสในอุตสาหกรรม ทีม R&D มีความแข็งแกร่ง ได้มีส่วนร่วมในการวิจัยและพัฒนาโครงการวิทยาศาสตร์และเทคโนโลยีแห่งชาติและโครงการทางทหารที่แข็งแกร่งในการป้องกันประเทศหลายครั้ง ในปี 2020 Yijia Precision ได้เข้าสู่ระบบการจัดซื้อจัดจ้างของ Aerospace Science and Technology Group และ AVIC Group
ผ่านระบบการจัดการคุณภาพ IS09001: 2000 และการรับรองระบบการจัดการคุณภาพ ISO/TSl6949: 2002
ในอุตสาหกรรมการผลิตเครื่องมือกล สปินเดิลต้องใช้ความเร็วในการหมุนและความเสถียรแบบใด แบริ่งลูกกลิ้ง...
ในอุตสาหกรรมการผลิตเซมิคอนดักเตอร์ ความต้านทานการสึกหรอของตลับลูกปืนเม็ดกลมแกนหมุนที่มีความแม่นยำ...
ในสาขาการบินและอวกาศทำอย่างไร ตลับลูกปืนเม็ดกลมสัมผัสเชิงมุมที่มีความแม่นยำสูง ตอบสนองความ...
Arrayที่อยู่
86-571-86157772
86-571-86157772
เรามีทีมงาน R&D ที่แข็งแกร่ง และเราสามารถพัฒนาและผลิตผลิตภัณฑ์ตามแบบหรือตัวอย่างที่ลูกค้าเสนอ
ฝั่งตะวันออกของถนน Dongxi เมือง Linping หางโจว ประเทศจีน
86-571-86157772(รวมเครื่อง) / 86157773 /86157641/86157645
Copyright © Hangzhou Huaxing Kechuang Holding Group Co., Ltd. All Rights Reserved.

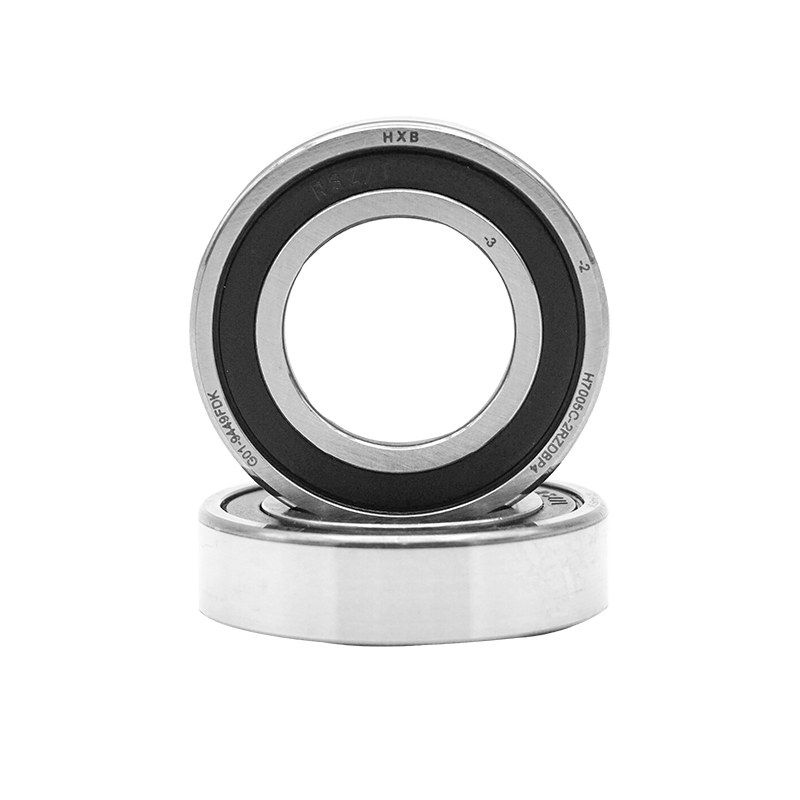

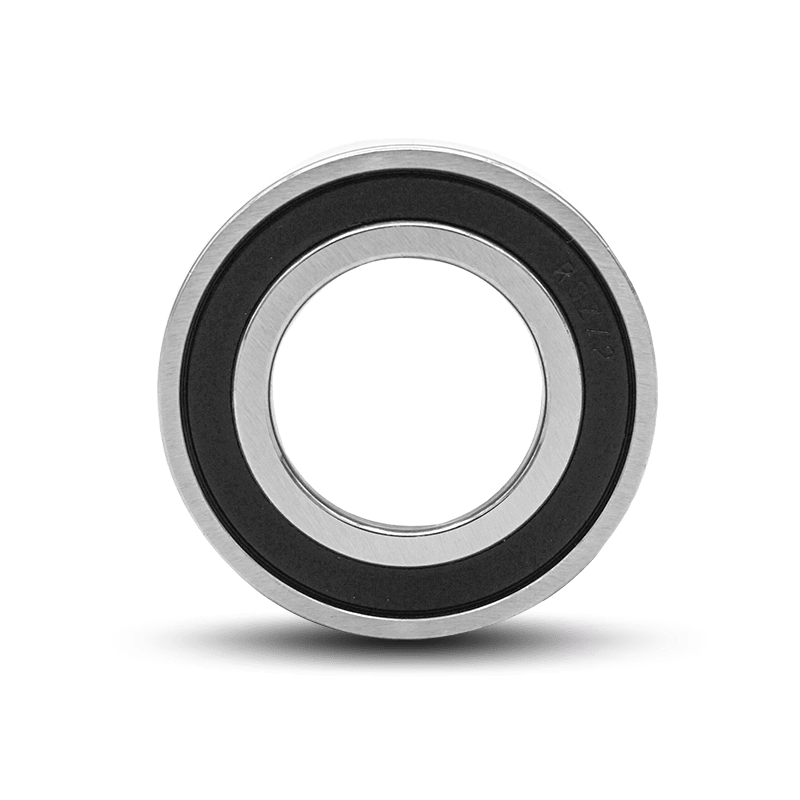

OEM H7005C-2RZ-DT-P4 25*47*12 มม. ตลับลูกปืนเม็ดกลมสัมผัสเชิงมุมความเร็วสูง ซัพพลายเออร์
